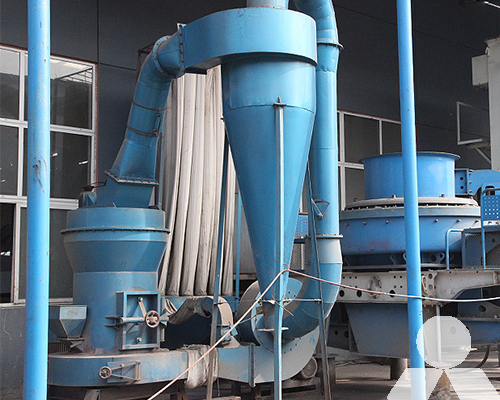

How raymond grinder works demo

I can certainly provide you with a general overview of how a Raymond grinder works. The Raymond grinder, also known as Raymond roller mill, is a type of grinding mill widely used in industries like mining, construction, chemical industry, and metallurgy. It operates on the principle of pendulum grinding, where materials are crushed and ground between a rotating grinding roller and a stationary grinding ring.

Here’s a step-by-step explanation of how a Raymond grinder works:

1. Material Feed: Raw materials, such as ores or minerals, are fed into the grinder through a hopper. The feeder mechanism ensures a controlled and even supply of material to the grinding chamber.
2. Grinding Rollers: Inside the grinding chamber, there are several grinding rollers that rotate around a central axis. These rollers exert pressure on the material as they rotate, causing it to be crushed and ground.
3. Grinding Ring: The grinding rollers roll over a stationary grinding ring. The grinding ring has a slightly conical shape and is equipped with multiple grinding segments. These segments contain the grinding material and are responsible for grinding the incoming material.
4. Centrifugal Force and Pendulum Action: As the grinding rollers rotate, they are pushed outward by centrifugal force. This force causes the rollers to press against the grinding ring with a certain pressure. At the same time, the grinding rollers also have a pendulum-like motion due to the rotation of the central shaft. This combination of centrifugal force and pendulum action ensures efficient grinding of the material between the rollers and the grinding ring.
5. Airflow and Classification: The ground material, often in the form of fine particles, is carried by air currents generated by a fan or blower out of the grinding chamber. In some configurations, there is a classifier that separates finer particles from coarser ones. The finer particles are carried into the air stream and collected in a separate container, while the coarser particles are returned to the grinding zone for further processing.
6. Product Collection: The finely ground material is collected in a cyclone separator or a bag filter system. This separated material can be the final product or a intermediate product depending on the application.
7. Adjustment and Control: The grinding process can be controlled by adjusting factors such as the roller pressure, rotational speed, and classifier settings. This allows operators to optimize the grinding process for different materials and desired particle sizes.
8. Maintenance: Regular maintenance is essential to ensure the smooth operation of the Raymond grinder. This includes tasks like checking and replacing grinding components, lubricating moving parts, and addressing any wear and tear.

Remember, the specifics of how a Raymond grinder operates might vary based on the manufacturer and the specific model. Always refer to the manufacturer’s documentation for detailed information and safety guidelines.
