Animation of VSI Crusher operation

In the world of modern mining and aggregate production, technology plays a pivotal role in optimizing processes and improving efficiency. One such technological marvel is the VSI crusher, a versatile machine designed to revolutionize the way we crush and shape materials. In this article, we will take you on an animated journey through the operation of a VSI crusher, exploring its key components and the crushing process it facilitates.

VSI Crusher Basics:

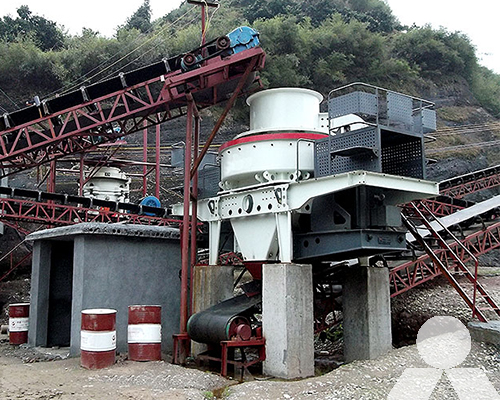

VSI stands for Vertical Shaft Impactor, and a VSI crusher is primarily used for crushing rocks and minerals to produce finely crushed materials for various applications like construction, concrete production, and road building. The VSI crusher differs from traditional crushers in that it uses a high-speed rotor with wear-resistant tips to accelerate rock particles into a crushing chamber.

Key Components:

1. Rotor: The heart of a VSI crusher is its rotor, which is equipped with multiple wear-resistant carbide tips or anvils. These tips facilitate the crushing process by imparting high-speed impacts on incoming rocks.
2. Feed Hopper: Material to be crushed is loaded into the feed hopper, which then directs it into the crushing chamber.
3. Crushing Chamber: This is where the magic happens. Rocks are accelerated by the rotor and collide with the wear-resistant tips, breaking down into smaller particles.
4. Conveyor Belts: Once crushed, the material is transported away from the VSI crusher for further processing or use in various applications via conveyor belts.

Crushing Process:
Now, let’s walk through the animated process of how a VSI crusher operates:

1. Feeding: Raw material is fed into the VSI crusher through the feed hopper.
2. Acceleration: The rotor spins at high speeds, causing the carbide tips to accelerate rocks within the crushing chamber.
3. Impact: Rocks collide with the wear-resistant tips on the rotor, shattering them into smaller pieces. This process is highly efficient and produces uniform, cubical-shaped end products.
4. Gradation Control: By adjusting the rotor speed and changing the configuration of the carbide tips, operators can control the size and gradation of the crushed material, ensuring it meets specific requirements.
5. Conveying: The crushed material exits the VSI crusher and is transported away for further processing or use.

The VSI crusher is a remarkable piece of machinery that has transformed the world of aggregate production and mining. Through its high-speed rotor and precision crushing capabilities, it enables the production of high-quality, uniform, and cubical-shaped materials. As technology continues to advance, VSI crushers are likely to play an even more significant role in shaping the future of various industries that rely on crushed materials.
