How to Extract Copper from Copper Rich Ores?

Introduction to Copper Ore Processing

Copper, one of humanity’s most essential metals, is primarily extracted from copper-rich ores through a series of complex processes. As a leading manufacturer of mineral processing equipment, Liming Heavy Industry provides advanced crushing and screening solutions that play a vital role in optimizing copper extraction operations. This guide explores the technical process of extracting copper from copper-rich ores and the equipment needed for maximum efficiency and yield.

Material Introduction: Understanding Copper Ores

Copper ores typically contain between 0.5% to 2% copper, mixed with various other minerals. The most common copper-bearing minerals include:

• Chalcopyrite (CuFeS₂) – The most abundant copper ore
• Bornite (Cu₅FeS₄) – Known as “peacock ore” due to its iridescence
• Chalcocite (Cu₂S) – A high-grade copper mineral
• Malachite (Cu₂CO₃(OH)₂) – A green secondary mineral
• Azurite (Cu₃(CO₃)₂(OH)₂) – A blue copper carbonate mineral

These ores often contain other valuable metals like gold, silver, and molybdenum, making efficient processing economically crucial.

Equipment Application Range

Liming Heavy Industry’s equipment handles all stages of copper ore processing:

• Primary crushing of run-of-mine copper ore
• Secondary and tertiary crushing for further size reduction
• Grinding and pulverizing for liberation of copper minerals
• Screening and classification of crushed materials
• Material handling and conveying between processing stages

Equipment Technology and Innovation

Our copper ore processing equipment incorporates cutting-edge technologies:

Advanced Crushing Chamber Designs

Our crushers feature optimized crushing chambers that increase reduction ratios while minimizing wear part consumption.

Automated Control Systems

Intelligent automation ensures optimal operation, adjusting settings in real-time based on feed material characteristics.

Wear Resistance Technology

We use proprietary alloys and designs in critical wear areas to extend component life in abrasive copper ore applications.

Energy Efficiency

Our equipment is engineered to deliver maximum throughput with minimal energy consumption, reducing operational costs.

Equipment Capacity and Types

Liming Heavy Industry offers a comprehensive range of equipment for copper processing:

Jaw Crushers (PE Series)

Our PE Series Jaw Crushers are ideal for primary crushing of copper ores:

• PE-600×900: Capacity 60-130 t/h
• PE-750×1060: Capacity 110-320 t/h
• PE-900×1200: Capacity 220-380 t/h

Cone Crushers (HST Series and HPT Series)

For secondary and tertiary crushing, our cone crushers deliver exceptional performance:

• HST160: Capacity 66-320 t/h
• HST250: Capacity 104-630 t/h
• HPT300: Capacity 120-440 t/h

Impact Crushers (CI5X Series)

Our impact crushers are suitable for medium-hard copper ores:

• CI5X1220: Capacity 200-500 t/h
• CI5X1315: Capacity 250-600 t/h
• CI5X1520: Capacity 400-800 t/h

Mobile Crushing Plants (K Series)

For flexible operations, our mobile crushing plants offer excellent mobility and setup flexibility:

• K3 Series: Capacity 70-150 t/h
• K4 Series: Capacity 150-350 t/h

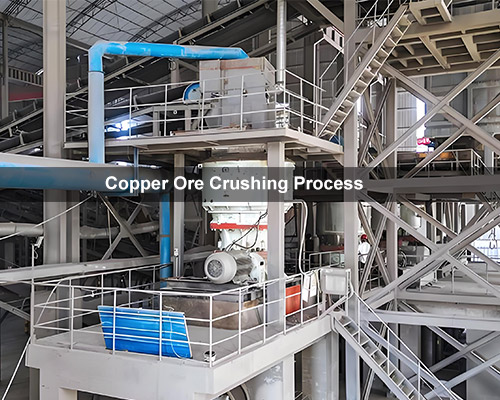

Copper Ore Crushing Process

The process of extracting copper from copper-rich ores involves several critical stages:

1. Primary Crushing

Run-of-mine copper ore is fed into a primary jaw crusher (such as our PE-900×1200) where large rocks (up to 1.5m) are reduced to approximately 150-200mm.

2. Secondary Crushing

The output from the primary crusher is conveyed to a secondary cone crusher (HST or HPT series) for further reduction to 50-70mm.

3. Tertiary Crushing

For additional size reduction, tertiary cone crushers or impact crushers (CI5X series) process the material down to 10-20mm.

4. Grinding

After crushing, the ore proceeds to grinding mills where it is reduced to a fine powder (typically 70-80% passing 75μm) to liberate copper minerals from the gangue.

5. Concentration

The finely ground ore undergoes froth flotation to separate copper minerals from waste material, resulting in a copper concentrate containing 20-30% copper.

6. Smelting and Refining

The concentrate is smelted and refined to produce copper cathodes or other finished products with 99.99% purity.

Common Challenges and Solutions

Abrasive Ore Wear

Challenge: Copper ores, particularly those with high silica content, cause rapid wear on crushing components.

Solution: Our crushers feature wear-resistant materials and innovative designs that extend service life by 30-40% compared to conventional equipment.

Throughput Limitations

Challenge: Many operations struggle to achieve designed throughput capacities.

Solution: Our equipment is engineered with optimized crushing chambers and higher power-to-weight ratios, ensuring maximum throughput efficiency.

Energy Consumption

Challenge: Crushing operations account for a significant portion of a mine’s energy costs.

Solution: Our energy-efficient designs can reduce power consumption by up to 15% while maintaining or increasing production rates.

Maintenance Downtime

Challenge: Unplanned maintenance stops disrupt production schedules.

Solution: Our equipment features quick-wear part replacement systems and predictive maintenance technologies that minimize downtime.

Case Study: Increased Copper Recovery in Chilean Mine

A major copper mine in Chile was experiencing low recovery rates due to inadequate liberation of copper minerals. The existing crushing circuit was producing inconsistent particle sizes, negatively impacting downstream processes.

Solution Implemented

Liming Heavy Industry installed a complete crushing circuit including:

• Primary: PE-1200×1500 Jaw Crusher
• Secondary: Two HST315 Cone Crushers
• Tertiary: CI5X1520 Impact Crusher

Results Achieved

• Throughput increased by 22% (from 2,100 tpd to 2,562 tpd)
• Copper recovery rate improved from 87.3% to 92.1%
• Energy consumption reduced by 18% per ton processed
• Maintenance downtime decreased by 35% annually
• Return on investment achieved in less than 10 months

Why Choose Liming Heavy Industry

When selecting equipment for extracting copper from copper-rich ores, consider these advantages of partnering with Liming Heavy Industry:

Proven Expertise

With over 30 years of experience in mineral processing equipment manufacturing, we understand the unique challenges of copper ore processing.

Customized Solutions

We offer tailored solutions based on your specific ore characteristics and production requirements.

Comprehensive Support

Our global network provides prompt technical support, spare parts availability, and service expertise.

Research and Development

We invest significantly in R&D to continuously improve our products and incorporate the latest technological advancements.

Quality Assurance

All our equipment meets international quality standards and is rigorously tested before delivery.

Conclusion and Strong Call to Action

Efficient extraction of copper from copper-rich ores requires robust, reliable, and high-performance crushing equipment. The right equipment selection can significantly impact your operation’s profitability through increased recovery rates, reduced energy consumption, and lower maintenance costs.

Liming Heavy Industry’s comprehensive range of crushers and processing equipment is specifically designed to handle the challenges of copper ore processing. Our technologically advanced solutions have proven successful in mining operations worldwide, delivering tangible results and rapid return on investment.

Ready to optimize your copper extraction process? Contact our technical experts today for a personalized consultation and equipment recommendation. Let us help you maximize your copper recovery and operational efficiency with our industry-leading crushing solutions.
