250t/h Manganese Ore Crushing Plant in South Africa
The requirements of manganese ore stone are mainly used in the metallurgical industry, such as high-carbon manganese steel wire, low-carbon ferromanganese, and electrolytic manganese. In addition, the manganese ore also plays an important role in the glass and ceramic industry, as a raw material for the production of silicon manganese, and as a catalyst for the production of petroleum and chemical products.
Material: Manganese ore
Capacity: 250t/h
Input Size: <600mm
Output Size: 0-20mm
Equipment: A PE750*1060 Jaw Crusher, 3 CS160 Cone Crusher and 2 sets of vibrating screen

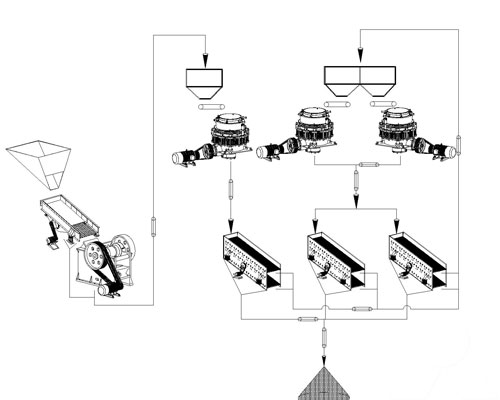

Production Process:
This project is located in South Africa. The customer purchased a 250t/h manganese ore crushing plant from Liming Heavy Industry in June 2020. The plant is designed to process 250 tons per hour of manganese ore, which includes a primary crushing station, a secondary crushing & screening station and finally a tertiary crushing & screening station.
The primary crushing station consists of a hopper, a vibrating feeder, a PE jaw crusher, a cone crusher, a vibrating screen and belt conveyors. The hopper is used to store the manganese ore received from the mine. The vibrating feeder then feeds the ore into the jaw crusher with the help of belt conveyors. The ore is crushed into smaller sizes and then sent to the cone crusher for further crushing.
The secondary crushing & screening station consists of a cone crusher, a vibrating screen and belt conveyors. The cone crusher crushes the ore to a smaller size and then sends it to the vibrating screen for screening. The screened ore is then sent to the tertiary crushing & screening station.
The tertiary crushing & screening station consists of a cone crusher, a vibrating screen and belt conveyors. The cone crusher crushes the ore to a smaller size and then sends it to the vibrating screen for screening. The screened ore is then sent to the finished product storage area via belt conveyors.
Customer Feedback
The 250t/h manganese ore crushing plant in South Africa has been successfully put into operation. The production capacity of this project is stable and the output is excellent. The customer is very satisfied with the equipment and services provided by Liming Heavy Industry.I found that Liming Heavy Industry is very professional. I have purchased one jaw crusher, three sets of cone crusher, two sets of vibrating screens from Liming Heavy Industry. Now the machines are running well. Besides, Liming Heavy Industry has good after-sale service, and they can pay regular return visit. Excellent！
