Benefits of using vsi6x for sand production in construction projects
Deconstructing Kinematics: The Benefits of using vsi6x for sand production in construction projects
The structural integrity of a mega-infrastructure project is dictated long before the concrete is poured; it is decided inside the crushing chamber. During a metallurgical audit of a high-speed rail concrete batching plant in Germany this August 2025, engineers faced persistent failures in achieving C50+ compressive strength. The root cause was not the cement chemistry, but the flawed geometry of the manufactured sand. The contractor was utilizing secondary cone crushers to produce fines, resulting in flaky, elongated particles riddled with internal micro-fractures. Understanding the Benefits of using vsi6x for sand production in construction projects requires a shift from viewing sand making as mere size reduction to recognizing it as precise kinetic shaping. The VSI6X vertical shaft impactor fundamentally alters the physical properties of the aggregate, securing the structural baseline for critical civil engineering.
Eliminating Micro-Cracks via Kinetic Ejection
Standard compressive crushers squeeze rock, inducing invisible stress fractures. Kinetic impact shears them away.
Jaw and cone crushers operate on the principle of immense compression. While highly efficient for primary and secondary volume reduction, this squeezing action naturally forces the mineral to break along unpredictable fault lines. More critically, it leaves the surviving aggregate with deep internal micro-cracks. When this compromised sand is mixed into structural concrete, these microscopic faults become the exact points where structural failure initiates under load.
The VSI6X sand maker abandons compression in favor of high-velocity kinetic energy. Powered by dual high-torque motors, the deep-cavity rotor accelerates the aggregate to ejection velocities exceeding 70 meters per second. When the rock collides with the stationary anvil bed, the extreme kinetic impact cleanly shears away any weakened, micro-fractured edges. The surviving 0-5mm sand particle possesses absolute structural integrity, guaranteed to withstand the rigorous demands of high-grade construction projects.

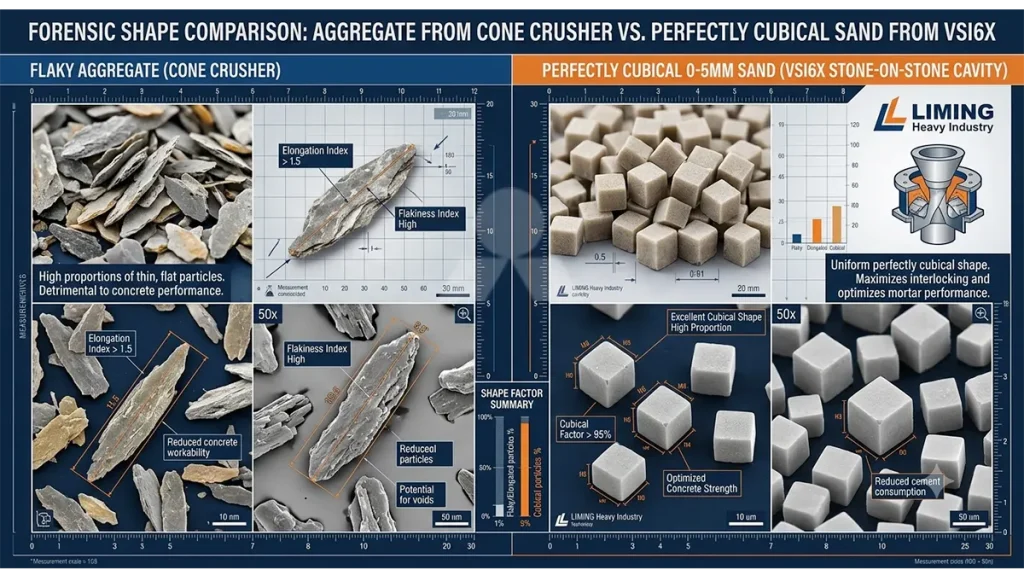

The Physics of “Stone-on-Stone” Cubical Geometry
The shape of the aggregate dictates the volume of cement paste required in the batching plant. Elongated or flaky sand particles create massive voids in the concrete mix matrix. To fill these voids and achieve the necessary bonding strength, contractors are forced to pump in exorbitant amounts of expensive cement powder, devastating the project’s production-to-cost ratio.
By optimizing the fineness modulus and achieving a perfect cubical shape, VSI6X manufactured sand tightly interlocks within the concrete matrix. This geometric superiority drastically reduces the void fraction. Concrete batching plants utilizing VSI6X sand frequently report lowering their expensive cement paste consumption by up to 15% while simultaneously increasing the final compressive strength of the pour.
Volumetric Supremacy: The Four-Opening Rotor
Large-scale construction projects demand an unbroken supply chain of premium aggregate.
| Rotor Feature | Legacy VSI Crushers | The VSI6X Advantage | Impact on Construction Projects |
|---|---|---|---|
| Discharge Openings | Three Ports | Patented Four Ports | Increases volumetric throughput by 20% |
| Ejection Velocity | < 60 m/s | > 70 m/s | Superior elimination of micro-cracks |
| Cavity Geometry | Shallow / High Abrasion | Deep-Cavity Expansion | Allows higher mass retention for rock bed |
| Power Delivery | Single Motor Draw | Dual-Motor Synchronization | Prevents high-amp stalling under peak load |
Integrating the patented four-opening rotor into the VSI6X fundamentally alters the mass balance equation. By streamlining the internal fluid dynamics of the rock flow, the machine processes up to 20% more material per kilowatt than legacy three-opening designs. This ensures that mega-infrastructure projects maintain a steady, high-tonnage supply of premium manufactured sand without encountering mechanical bottlenecks.
Protecting Purity: Eradicating Iron Contamination
Certain advanced construction applications, including high-grade architectural glass and specialized foundry casting, require silica sand with absolute zero iron contamination. Standard crushers rely on steel blow bars or mantles that degrade over time, constantly shedding microscopic iron shavings directly into the aggregate stream.

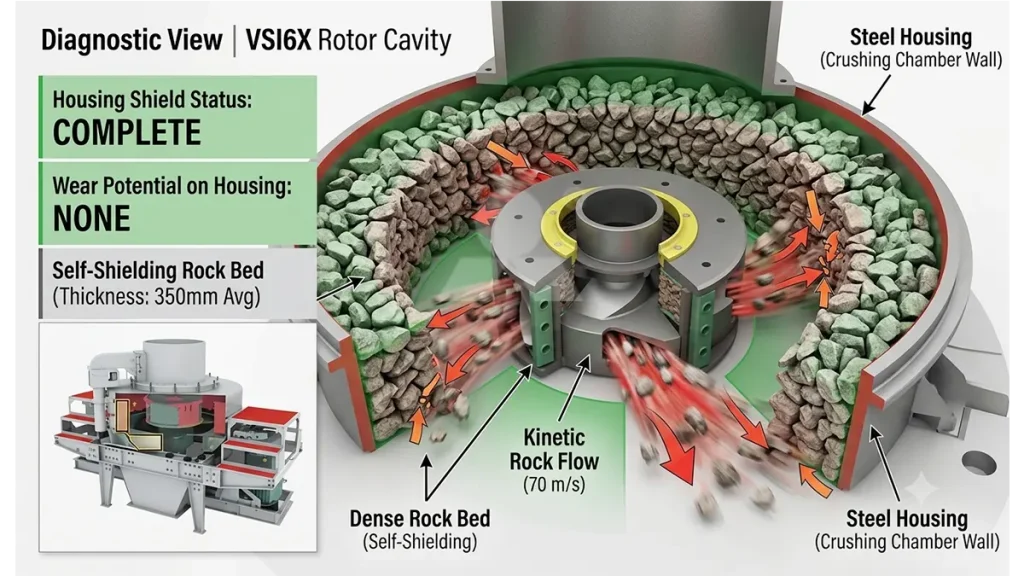

The VSI6X neutralizes this metallurgical flaw. By utilizing the raw feed material to build a sacrificial rock anvil along the outer wall, the machine weaponizes the stone against itself. The tungsten carbide throwing blocks only serve to initiate the acceleration trajectory. This preserves the chemical purity of the manufactured sand while simultaneously protecting the hardware amortization cycle by radically extending the lifespan of the internal wear parts.
Kinematic Geometry Diagnostics & Micro-Fracture Post-Mortem
Decades ago, operators attempted to force primary and secondary crushers to do the work of a tertiary shaper by tightening the CSS to extreme limits. This resulted in severe “ring bounce,” massive flakiness indices, and shattered eccentric shafts. True high-yield sand requires a dedicated, high-velocity VSI stage.
The VSI is a precision kinematic instrument, not a blunt-force breaker. Allowing 60mm boulders to enter the rotor exponentially increases the kinetic mass at 70m/s. This excessive force snaps the brittle tungsten carbide throwing blocks right off their mounts, inducing violent rotor imbalance and immediate shutdown.
Calculating the fluid dynamics inside the chamber shows that diverting 30% of the feed outside the rotor to form the dense rock anvil increases inter-particle collision density. If you close the cascade bypass, you reduce the polishing effect, resulting in coarser sand. Calibrating this volumetric ratio dictates your exact grading curve.
Enforce Kinematic Shaping to Secure Structural Integrity
The foundation of modern civil engineering relies on the geometric perfection of its raw materials. Evaluating the Benefits of using vsi6x for sand production in construction projects proves that relying on compressive crushing for final sand shaping is a mathematical liability. If you continue to supply batching plants with flaky, micro-fractured aggregate, the resultant spike in cement consumption will obliterate the project’s expenditure per shift. Deploy the VSI6X to enforce “stone-on-stone” kinematics, eliminate micro-cracks, and guarantee the structural superiority of your manufactured sand.
